Axle type
04.000.000
04.000.000.1
04.000.000.2
Permitted Axle Load (kg)
9000
9000
9000
Brake
Disc430x45
Disc430x45
Disc430x45
Tyres
Single
Single
Single
Track width (SP) (mm)
2040
2095
2140
Axle cross section (mm)
148x14 ∅
148x14 ∅
148x14 ∅
Spring centre (FM) (mm)
1300
1300
1400
Wheel stud
10xM22x1.5
10xM22x1.5
10xM22x1.5
H/K (mm) ∅
280.8/355
280.8/355
280.8/355
Offset / M
120
120
120
Tyre example
385/65R22
385/65R22
385/65R22
Overal width (P) (mm)
2435
2490
2535
Axle type
04.000.000
Permitted Axle Load (kg)
9000
Brake
Disc430x45
Tyres
Single
Track width (SP) (mm)
2040
Axle cross section (mm)
148x14 ∅
Spring centre (FM) (mm)
1300
Wheel stud
10xM22x1.5
H/K (mm) ∅
280.8/355
Offset / M
120
Tyre example
385/65R22
Overal width (P) (mm)
2435
Axle type
04.000.000.1
Permitted Axle Load (kg)
9000
Brake
Disc430x45
Tyres
Single
Track width (SP) (mm)
2095
Axle cross section (mm)
148x14 ∅
Spring centre (FM) (mm)
1300
Wheel stud
10xM22x1.5
H/K (mm) ∅
280.8/355
Offset / M
120
Tyre example
385/65R22
Overal width (P) (mm)
2490
Axle type
04.000.000.2
Permitted Axle Load (kg)
9000
Brake
Disc430x45
Tyres
Single
Track width (SP) (mm)
2140
Axle cross section (mm)
148x14 ∅
Spring centre (FM) (mm)
1400
Wheel stud
10xM22x1.5
H/K (mm) ∅
280.8/355
Offset / M
120
Tyre example
385/65R22
Overal width (P) (mm)
2535

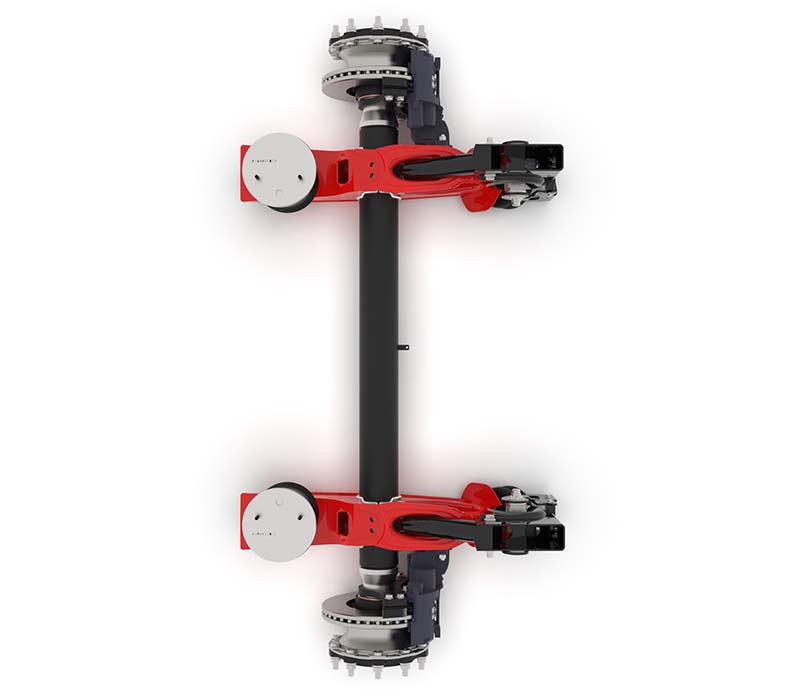

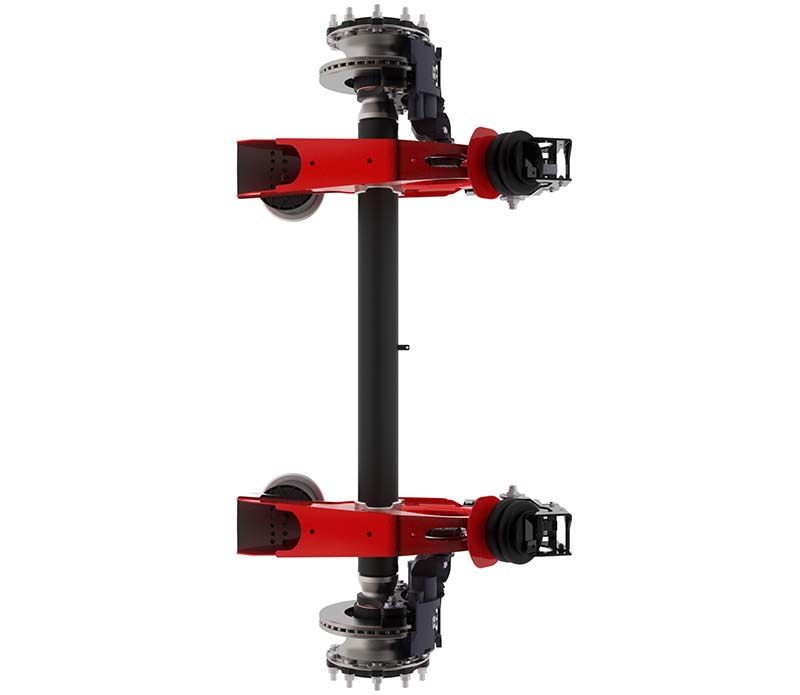

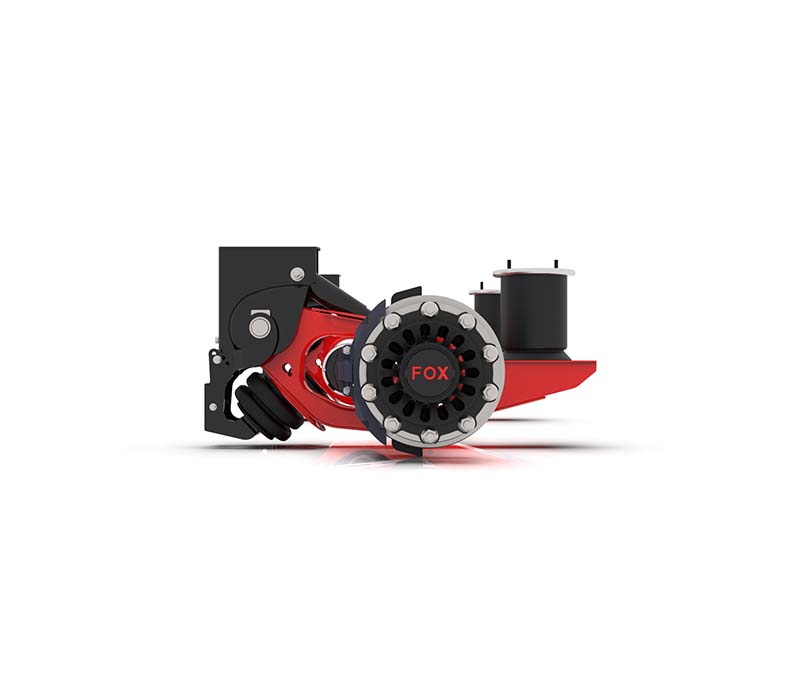

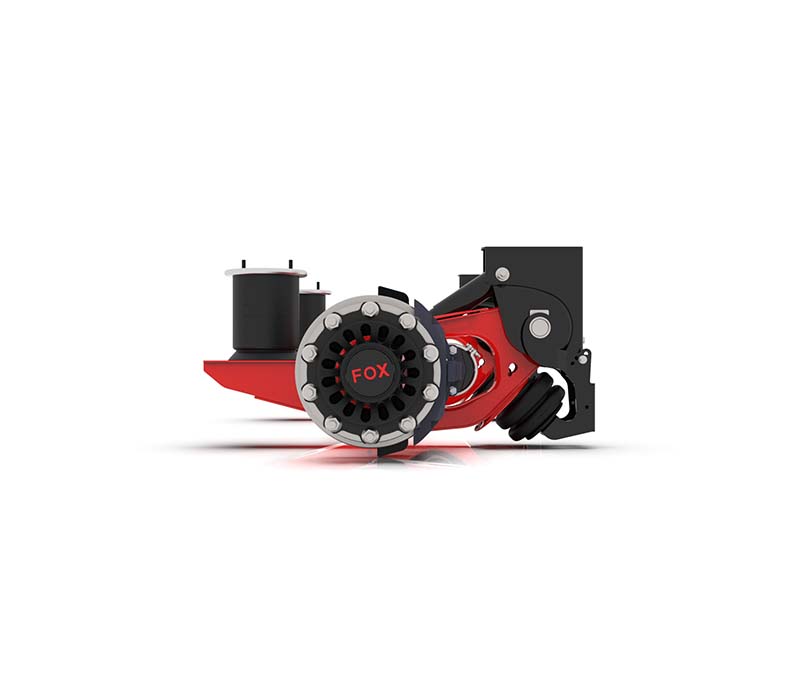

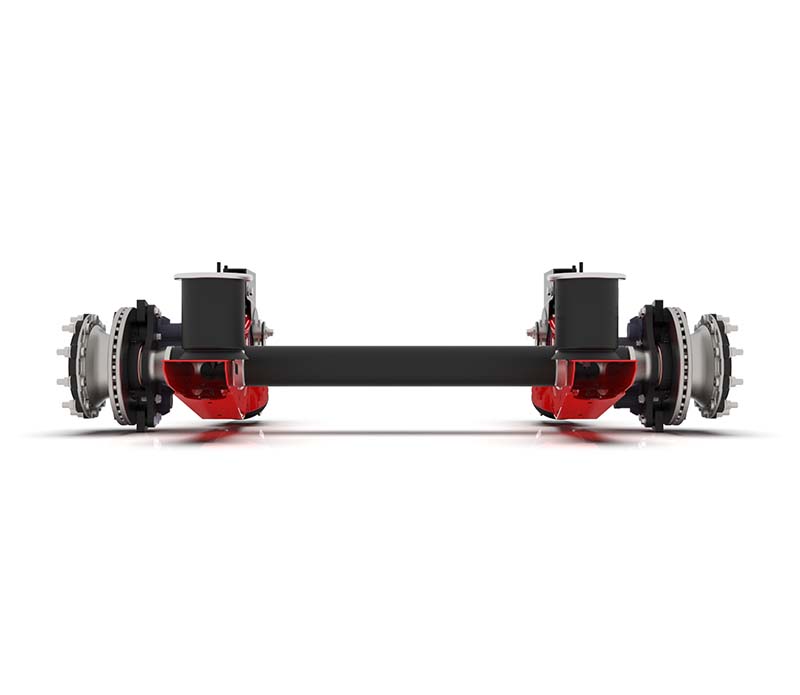

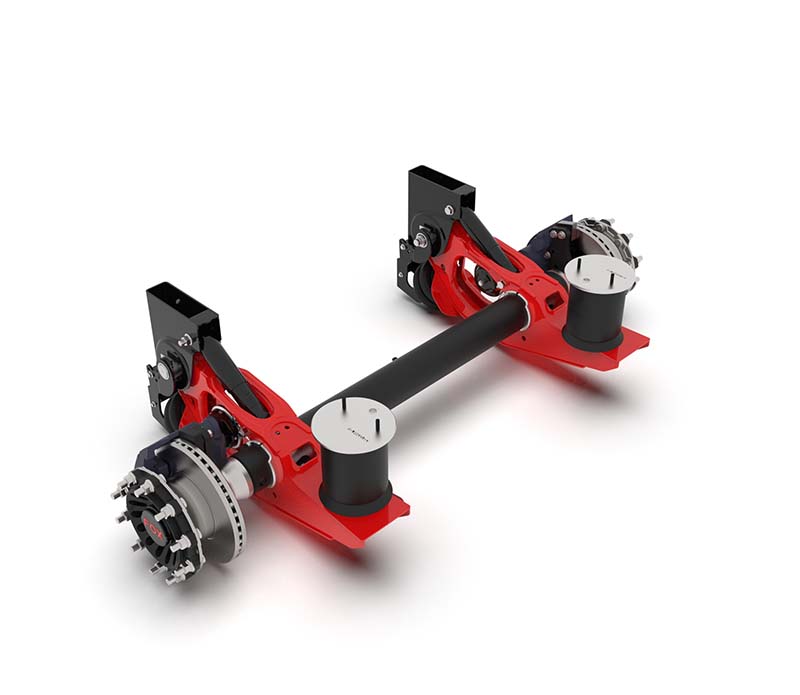

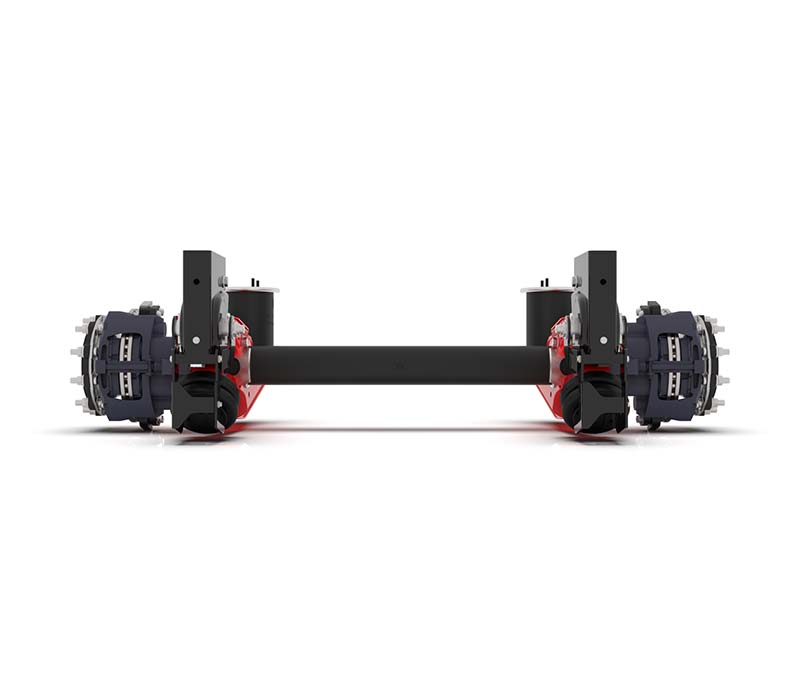

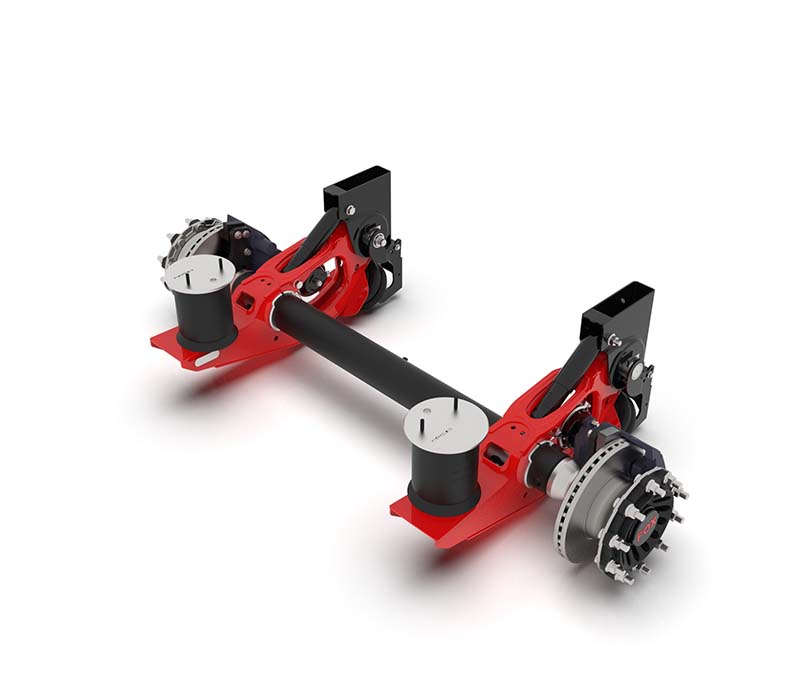

3x9 Intra Air Disc Brake Axle With round axle
