| Code | Type | Stroke | Maximum Working Pressure |
Oil Capacity | Working Pressure |
Maximum Pomp Flow |
|---|---|---|---|---|---|---|
| 100.03.290 | TF 192/5/5384 |
5384 mm | 190 bar | 107 L | 271 bar | 140 L/min |

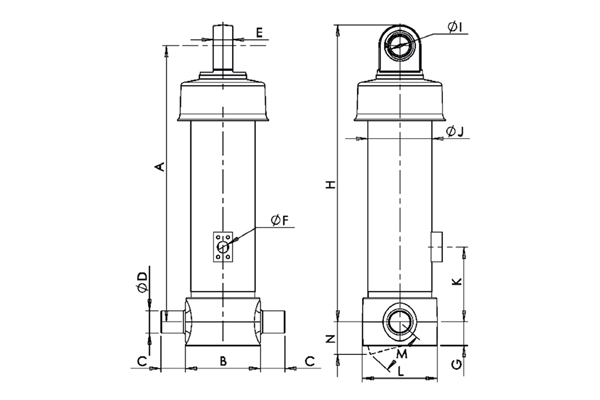

| Dimensions * | |
|---|---|
| A | 1441 |
| B | 248 |
| C | 65 |
| D | 60 |
| E | 52 |
| F | SAE 1” |
| G | 74 |
| H | 1497 |
| I | 50,8 |
| J | 215 |
| K | 400 |
| L | 222 |
| M | 140 |
| N | 120 |

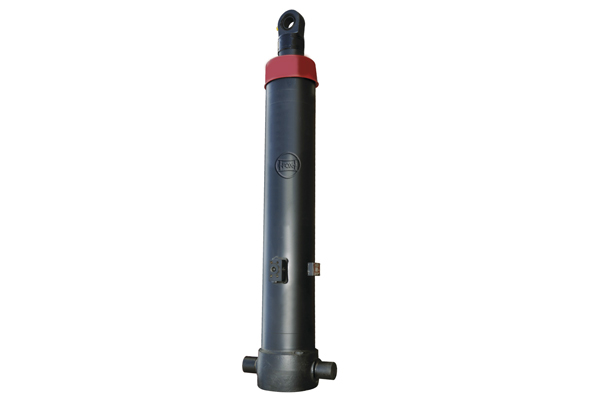

FOX Hydraulic Cylinder
